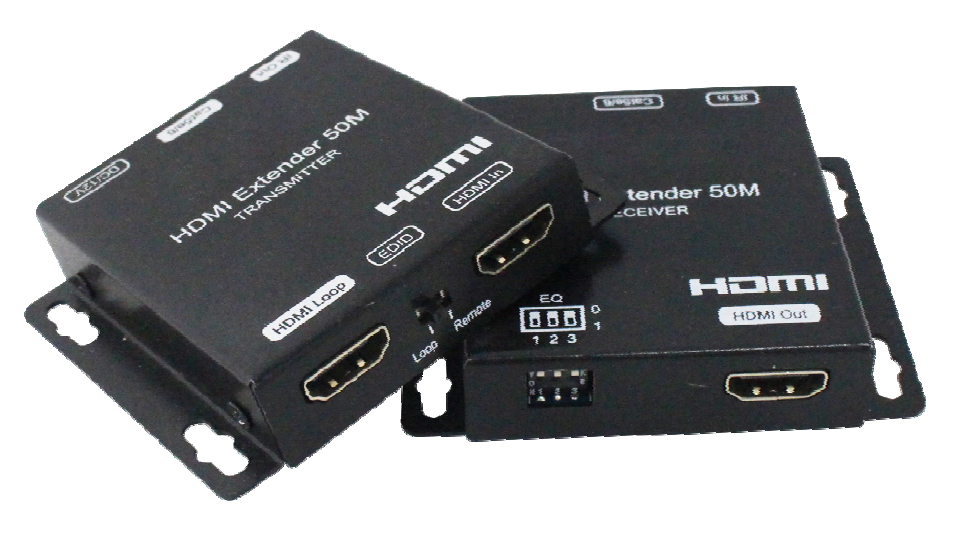

HDMI Extender over single Cat5e/6 cable up to 50M with HDMI loop out, support 1080p ,3D Bi-directional Wide Band IR (38khz-56khz), POC

HDMI Extender over single Cat5e/6 cable up to 50M with HDMI loop out, support 1080p  ,3D Bi-directional Wide Band IR (38khz-56khz), POC

Features

• Each set includes one transmitter with loop out and one receiver
• Audio sampling rate up to 48KHz, support 7.1 channels
• Support 1080P60HZ@YUV4:4:4 Maximum extension of 50m
• DC12V1A, support POC power supply
• RX end one-way infrared transmission to TX end
• Copy local and remote EDID functions
• Setting of distance extension dialing switch: cat5e/cat6 10m ~ 50m
• Support Dolby True-HD, DTS-HD Master audio.

Specifications

• Operating Temperature Range -5 to +40℃(+23 to +104℉)
• Operating Humidity Range 5 to 90%RH (No Condensation)
• Connectors on Transmitter
• HDMI Receptacle x 2 (1xHDMI input, 1xHDMI loop output)
• Power DC Receptacle x 1
• IR Receptacle x 1(for IR TX )
• Connectors on Receiver
• HDMI Receptacle x 1
• IR Receptacle x 1(for RX cable)
• Resolution outputs 1080p/1080i/720p/576p/480p
• Audio format supported DTS-HD Master Audio, Dolby True HD, multi-channel 7.1, stereo etc
• Output Video Signal HDMI
• Dimension (L×W×H) TX: L79.3xW68xH16.5mm; RX: L79.3xW68xH16.5mm
• Power supply DC 12V1A Power supply
• Power consumption 2W(MAX)
• Transmission Distance 1080p up to 50m
• NetWeight TX: 120g; RX:115g
