AUDIO Extractor/EXTENDER HDMI 2.0 4K60HZ

SX-HC03
$106.99
$106.99

AUDIO Extractor/EXTENDER HDMI 2.0 4K60HZ

AUDIO  Extractor/EXTENDER HDMI 2.0 4K60HZ



Features

  • Three Audio EDID Settings: Auto/2.0 CH/5.1CH

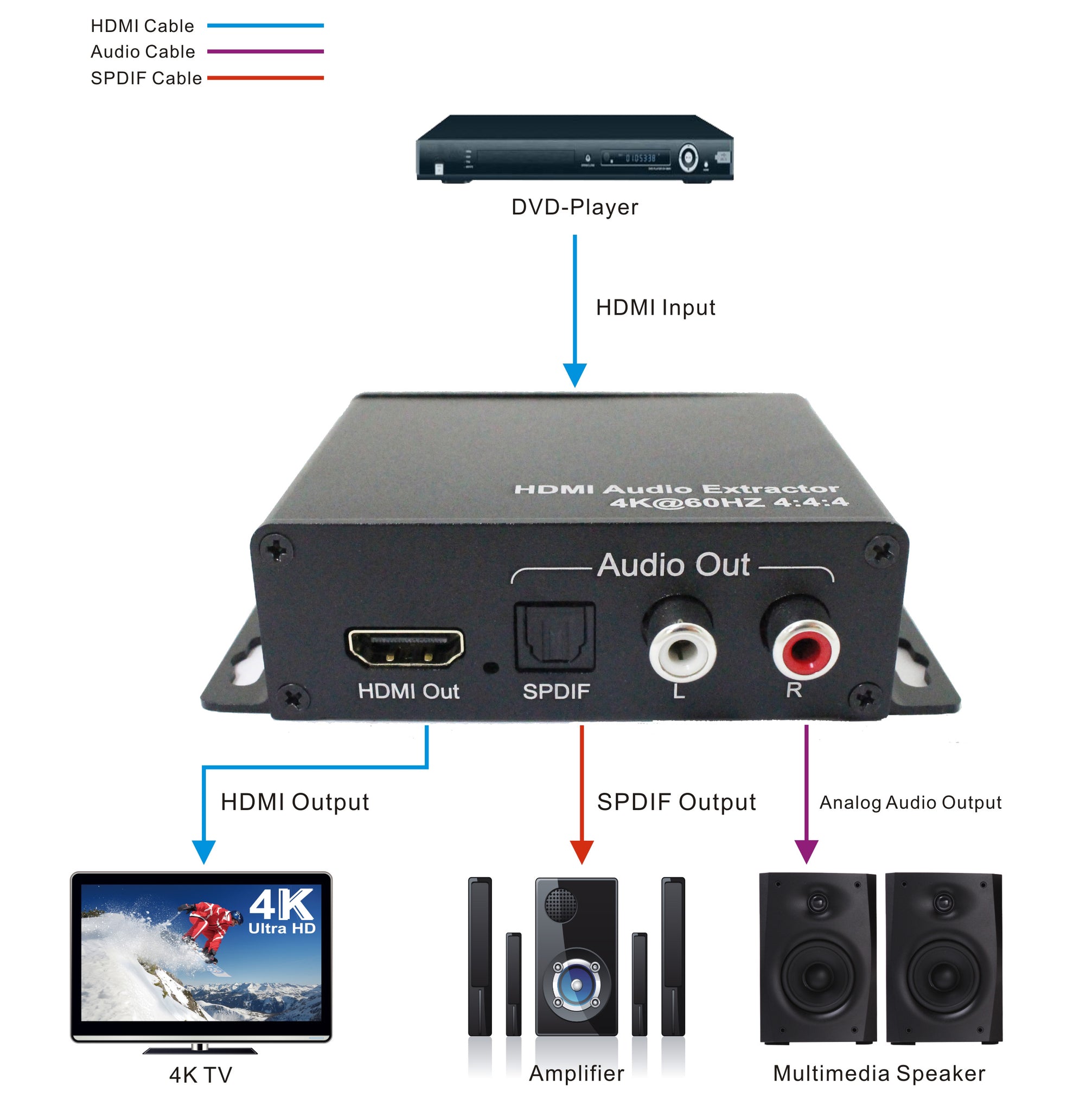

  • Extract the digital HDMI audio signal from the HDMI input to 2 channel
    analog stereo output or 5.1 channel Audio output
  • Support PCM and Dolby DTS
  • Supports resolution up to 4K@60Hz YUV4:4:4
  • Supports deep color up to 36bit
  • HDCP2.2/1.4 Compliant
  • Support CEC
  • Support firmware updating through USB port

Specifications

  • Operating Temperature Range -5 to +35℃(+23 to +95℉)
  • Operating Humidity Range 5 to 90%RH (No Condensation)
  • Input Video Signal 0.5-1.0 Volts P-P
  • Input DDC Signal 5 volts p-p(TTL)
  • Support Video format 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i
  • 3D video
  • Support Video Color Format xv-YCC/deep color 36bit
  • Support Audio Format PCM、DTS-HD Master Audio、Dolby true-HD etc.
  • Data transfer speed rate 18Gbps (Maximum)
  • Power consumption 2watts(Maximum)
  • Dimension (L×W×H) 104.4x64x28.3mm
  • Net Weight 175g
