HDMI2.0 70M 4K 18G Extender With Loop Out, Support HDR10, Dual POC, SPDIF, Audio Extraction

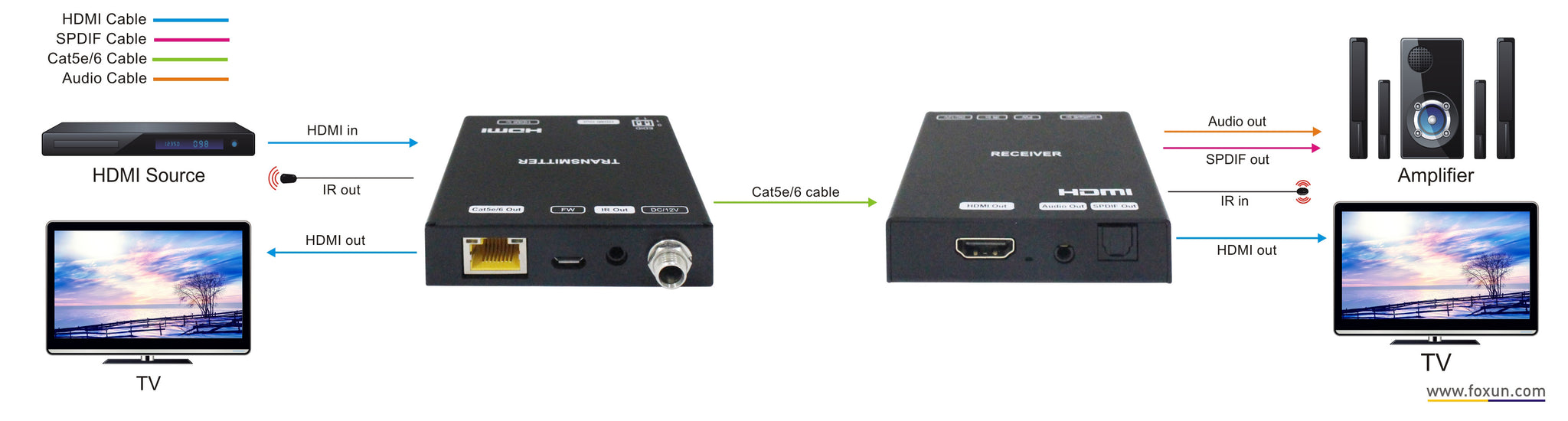

• HDMI EXTENDER – Extends Ultra HD 4K & HDR HDMI audio/video signals over one cost effective CAT6 cable, while maintaining signal strength and lossless video. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats
• TRANSMISSION RANGE – Up to 230ft (70m) @4K/60Hz 4:4:4. * Note: A good quality CAT5e/6/7 cable is essential in delivering quality content
• ADVANCED FEATURES – Bi-directional IR, and Power over Cable (PoC) allows one power adapter to power both the TX & RX units; HDMI 2.0, HDCP 2.2, UHD 4K/60Hz 4:4:4, HDR, 18Gbps Bandwidth; Easy-to-follow EDID configurations via DIP switches
• HDMI LOOPOUT – HDMI Transmitter couples as an HDMI splitter by adding an additional HDMI output to connect to a local display for monitoring
• AUDIO EXTRACTOR - Support3.5mm and Toslink Audio Out.

Features

• 0 Extender, Bandwidth 18Gbps, HDR10, Dual POC,HDCP2.2/1.4 Compliant
• Transmit up to 70m under 4K@60Hz YUV4:4:4, 90m under 4K@30Hz/1080P over single Cat5e/6 cable
• 1x HDMI loop out on transmitter
• Support EDID management
• Support wide band IR Pass through
• HDMI audio sampling rate up to 192KHz, max LPCM 7.1 channel
• Support S/PDIF and PCM2.0 analog audio extraction
• Support Dolby True HD, PCM and DTS-HD master audio
• Support Micro USB port to upgrade new firmware

Specifications

• Operating Temperature Range:  -5 to +40℃(+23 to +104℉)
• Operating Humidity Range:        5 to 90%RH (No Condensation)

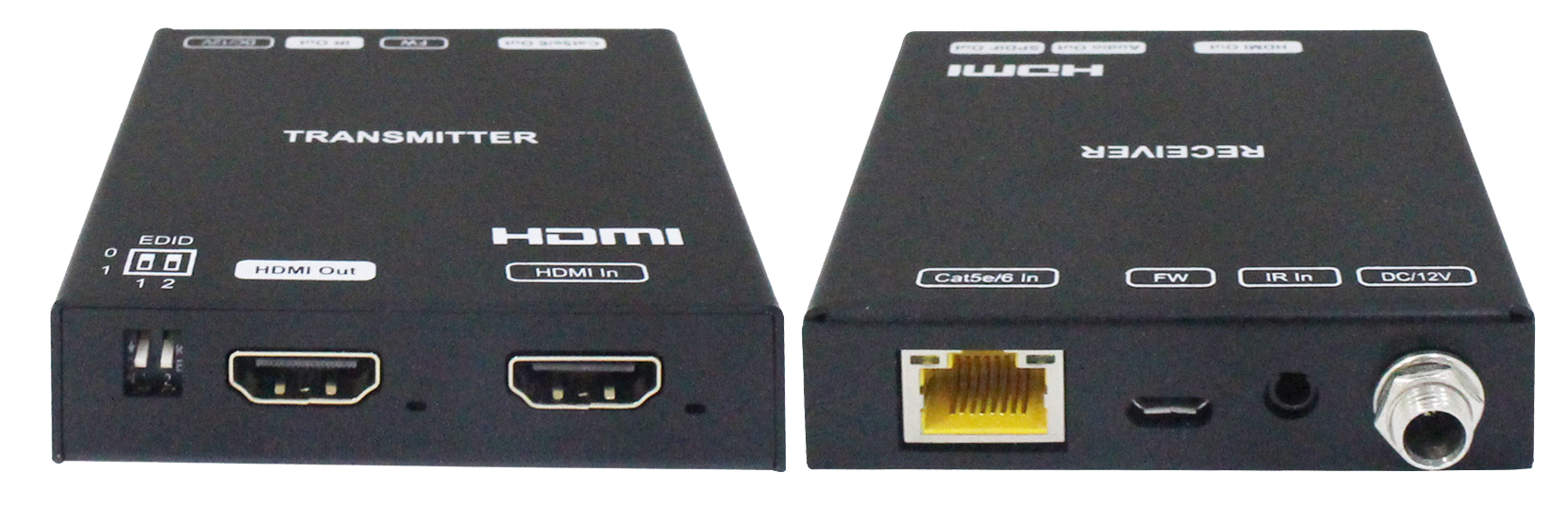

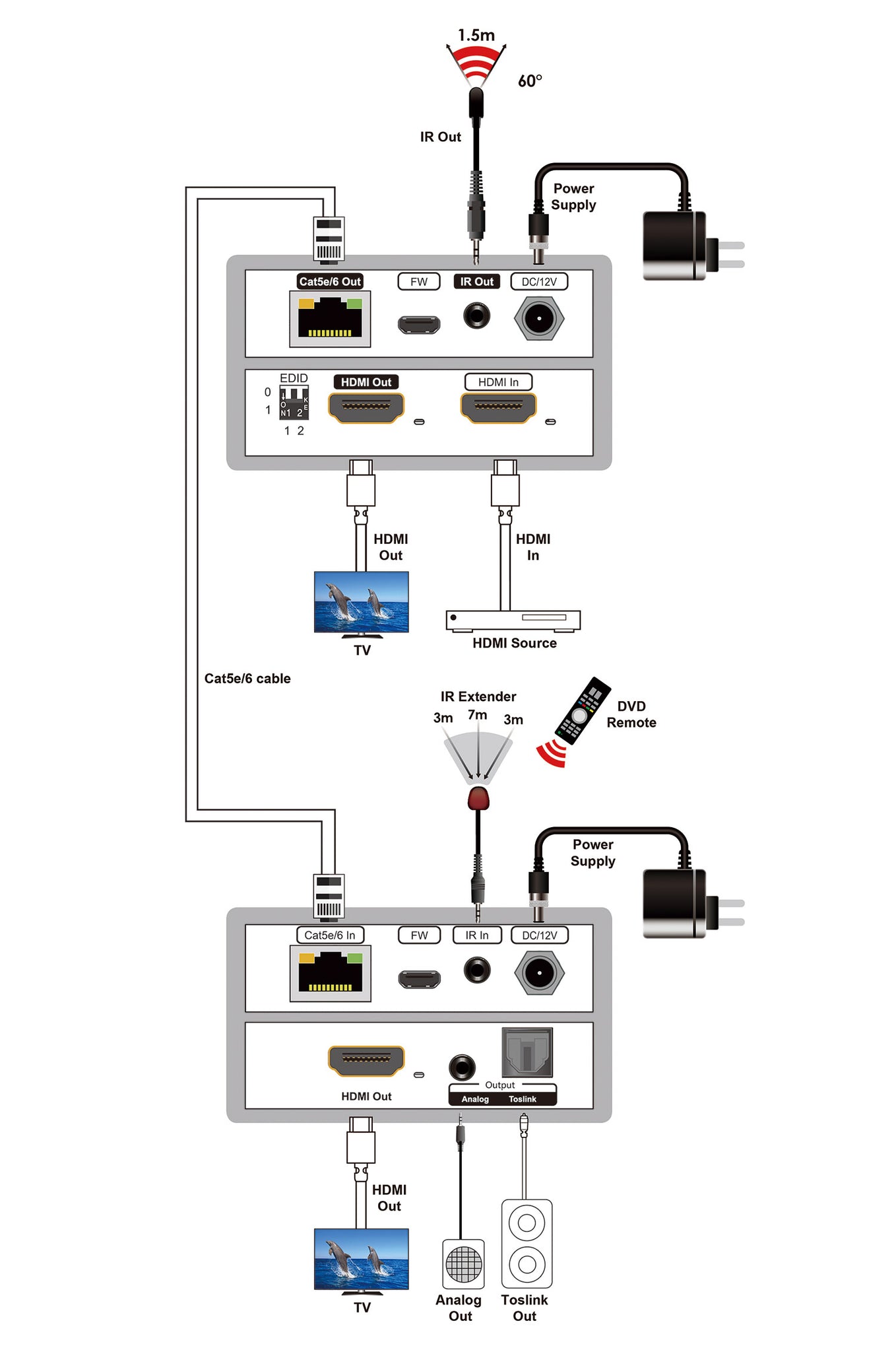

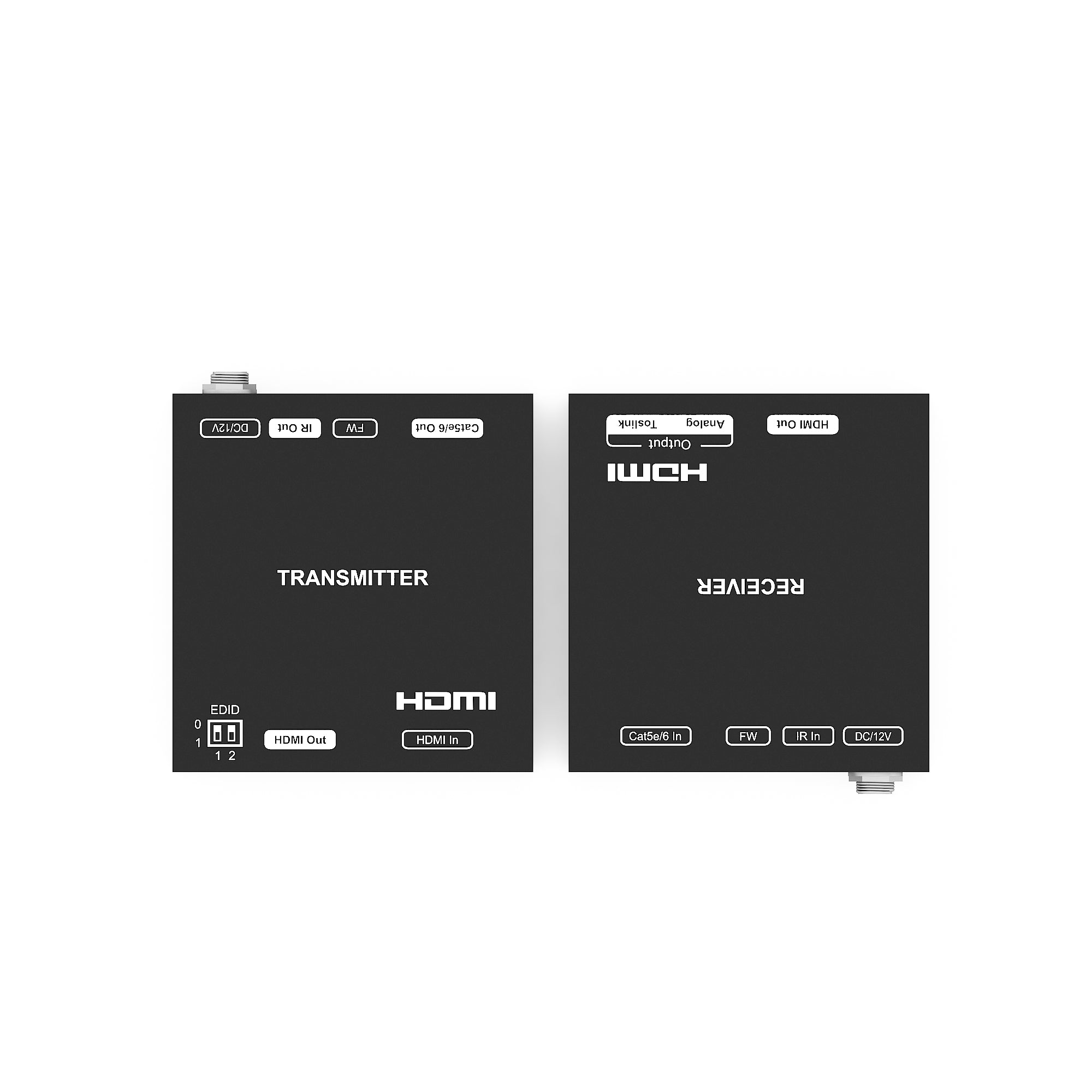

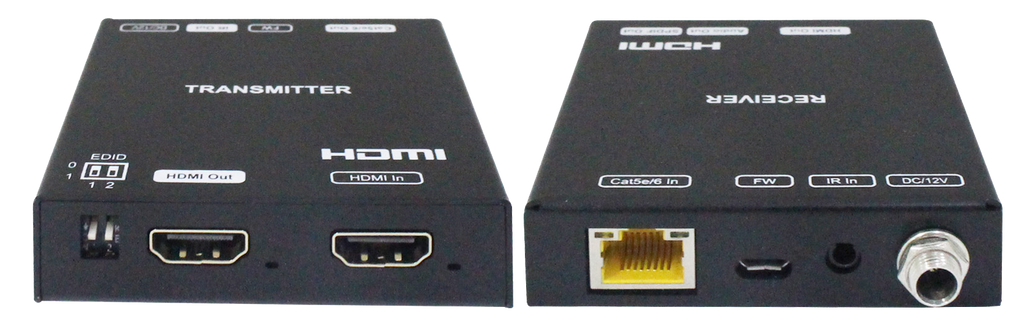

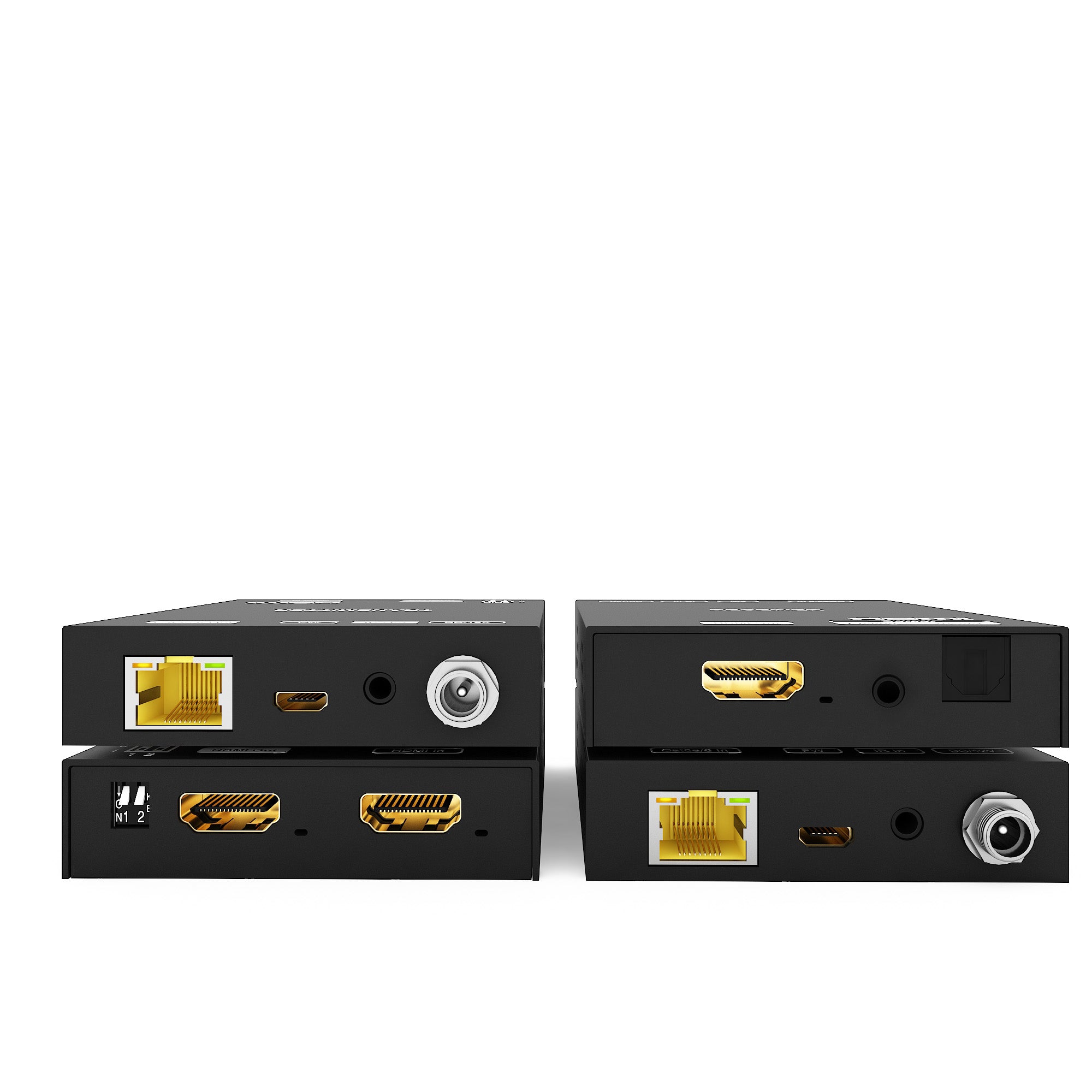

• Connectors on Transmitter:         HDMI Receptacle x 2 (1xHDMI input, 1xHDMI loop output), Power DC Receptacle x 1,  IR Receptacle x 1(for IR TX )
• Connectors on Receiver:              HDMI Receptacle x 1, IR Receptacle x 1(for RX cable)
• Resolution outputs:                      4k@60hzYUV4:4:4/ 4k@30HZ/1080p/1080i/720p/576p/480p
• Audio format supported:             DTS-HD Master Audio, Dolby True HD, LPCM7.1, PCM etc
• Output Video Signal:                    HDMI
• Dimension (L×W×H):                   TX: L75.8mm×W72.2mm × H18mm; RX: L75.8mm × W72.2mm × H18mm
• Power supply:                               DC 12V1A Power supply
• Power consumption:                     3.8W(MAX)
• Transmission Distance:                  up to 70m under 4K@60Hz YUV4:4:4, 90m under 4K@30Hz/1080P
• Net Weight:                                   TX: 305g; RX:305g

Package Includes

• 1xHDMI Transmitter
• 1xHDMI Receiver
• 1 x IR TX Emitter
• 1x IR RX Receiver
• 1x12V DC Adapter
• 1xUser Manual
• 4x Mounting Ears

Product Brochure

SX-EX63_Datasheet.pdf
