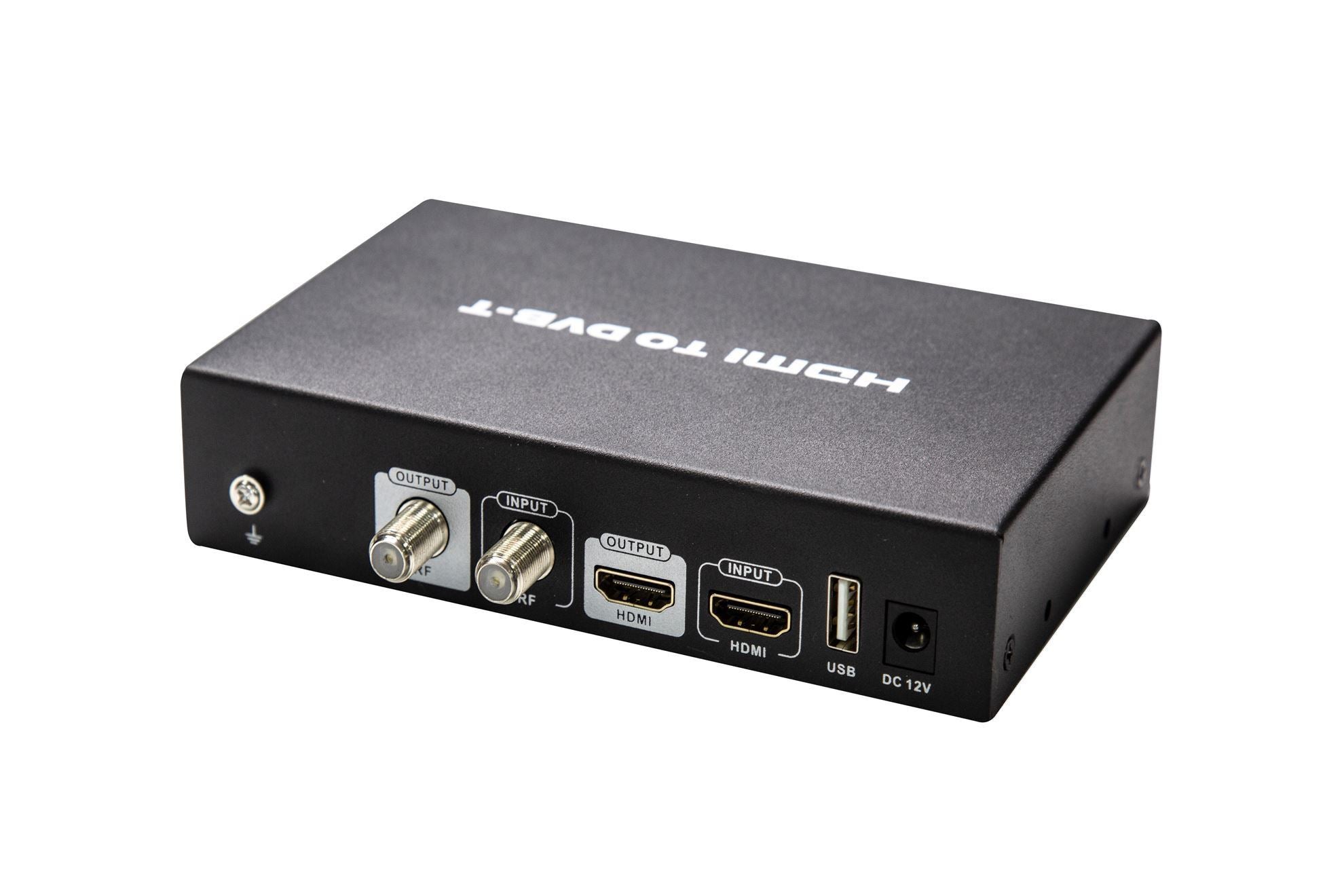

HDMI to RF Digital Modulator with Loop Out Port

LENKENG HDMI to RF Digital Modulator with Loop Out Port Supports Full HD 1080p@60Hz, Point & Multi Point to Multi Point

This is an HDMI to DVB-T converter, the perfect solution to distribute HDMI signal to DVB-T1 standard digital cable television via coaxial cables. Output can be set as any channel number and distributed to all the TV's in the system directly via CATV splitter, Co-existing with all your current existing channels.

Features

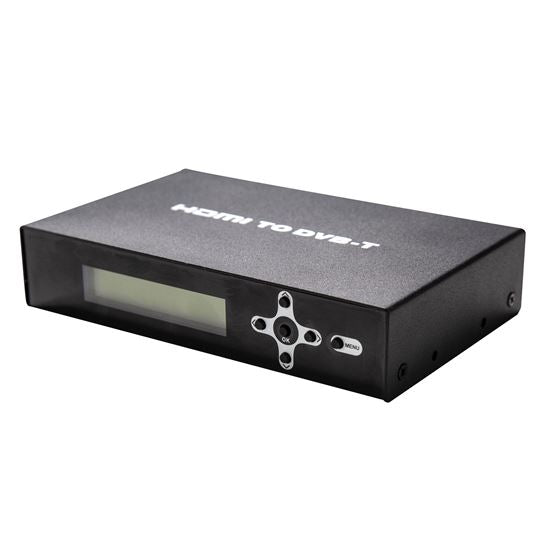

• Parameters can be set by buttons
• Wall-mounted function, easy installation
• Strong anti-noise and anti-interference ability
• Supports multiple modulators to be installed to distribute as many channels as you need
• Distributes one source to multiple displays with one modulator via CATV splitter
• Supports DVB-T1 digital high definition RF signal output
• HDMI input signal resolution up to full HD 1080p@60Hz

Specifications

• HDMI Signal:   HDMI1.3, fully compatible HDCP
• HDMI Loop Out Port :   Yes
• HDMI DDC Signal:   5Vp-p (TTL)
• HDMI TMDS Signal:   0.5 ~ 1.5Vp-p (TMDS)
• Input HDMI Resolution Supported:   480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
• HDMI Graphics Resolution:   1280x720@60Hz, 1920x1080@60Hz
• Video Encoding:   H.264
• Audio Encoding:   MPEG2
• Coaxial Output Standard:   DVB-T1
• Coaxial Cable Required:   RG6, RG7, RG11
• Frequency:   177.5 ~ 866MHz
• Effective Bit Ratio:   Max: 24M bits
• Insert Loss:   +2dBm
• RF output Wattage (TX):   -10dBm ~ -13dBm
• Delay Time:   200-300ms (Depends on the decoding ability of receivers)
• Audio Format:   Stereo PMC (44.1kbps, 48kbps)
• Power:   DC 12V/1A
• Product Consumption:   <5W
• Working Temperature:   0°C~50°C
• Stock Temperature:   -10°C~70°C .
• Relative Humidity:   0%~90%
• Product Dimensions:   158 x 115 x 33mm
• Weight:   520g
• Colour:   Nero

Product Brochure

• LKV379p-DVB-T_Datasheet.pdf
