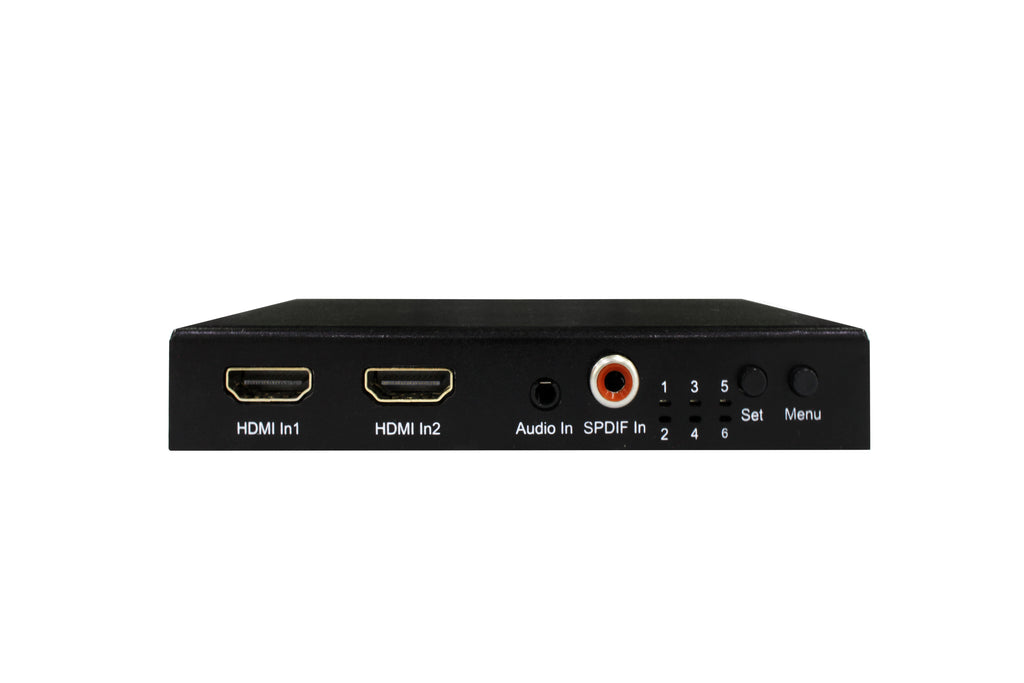

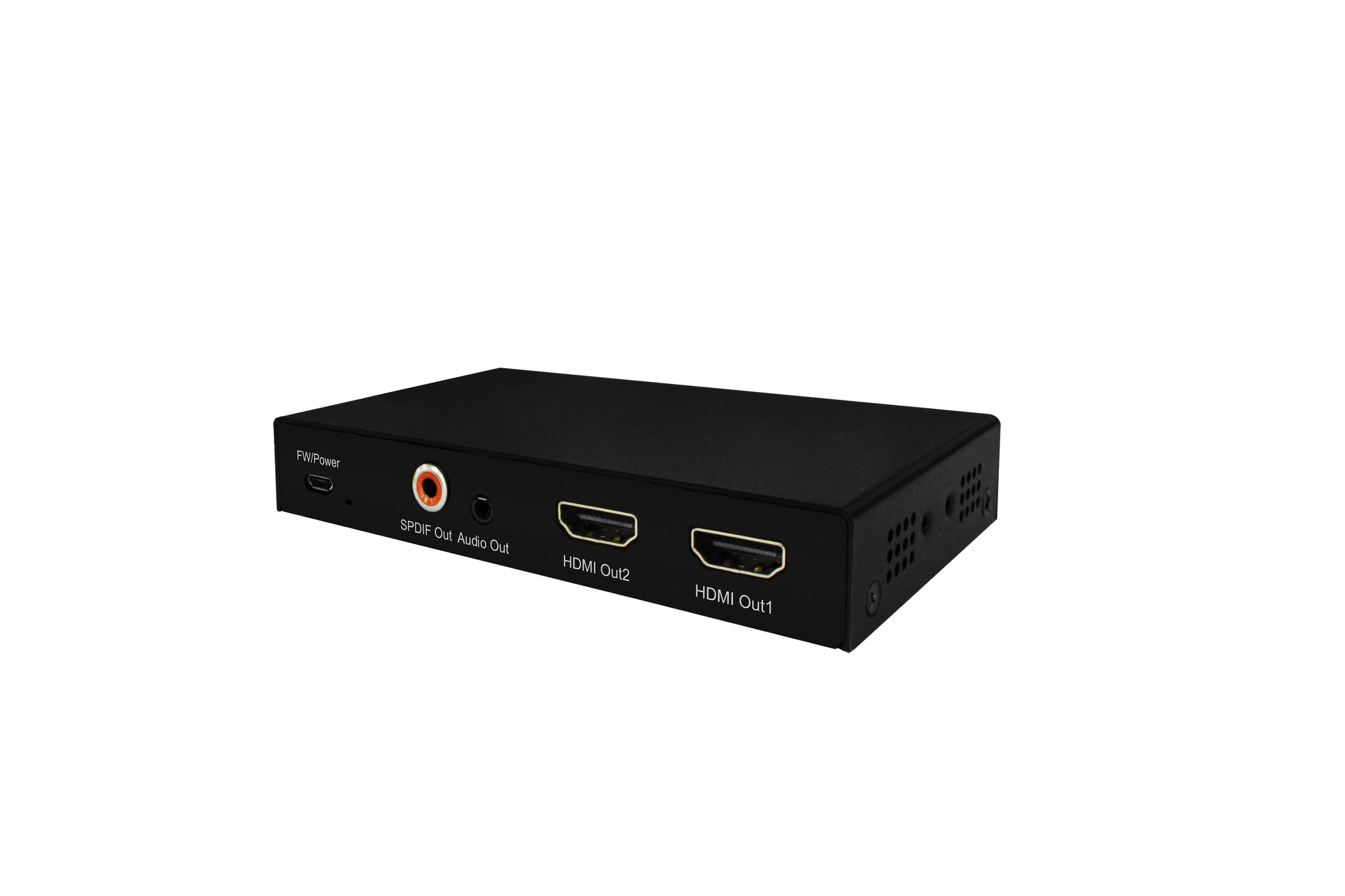

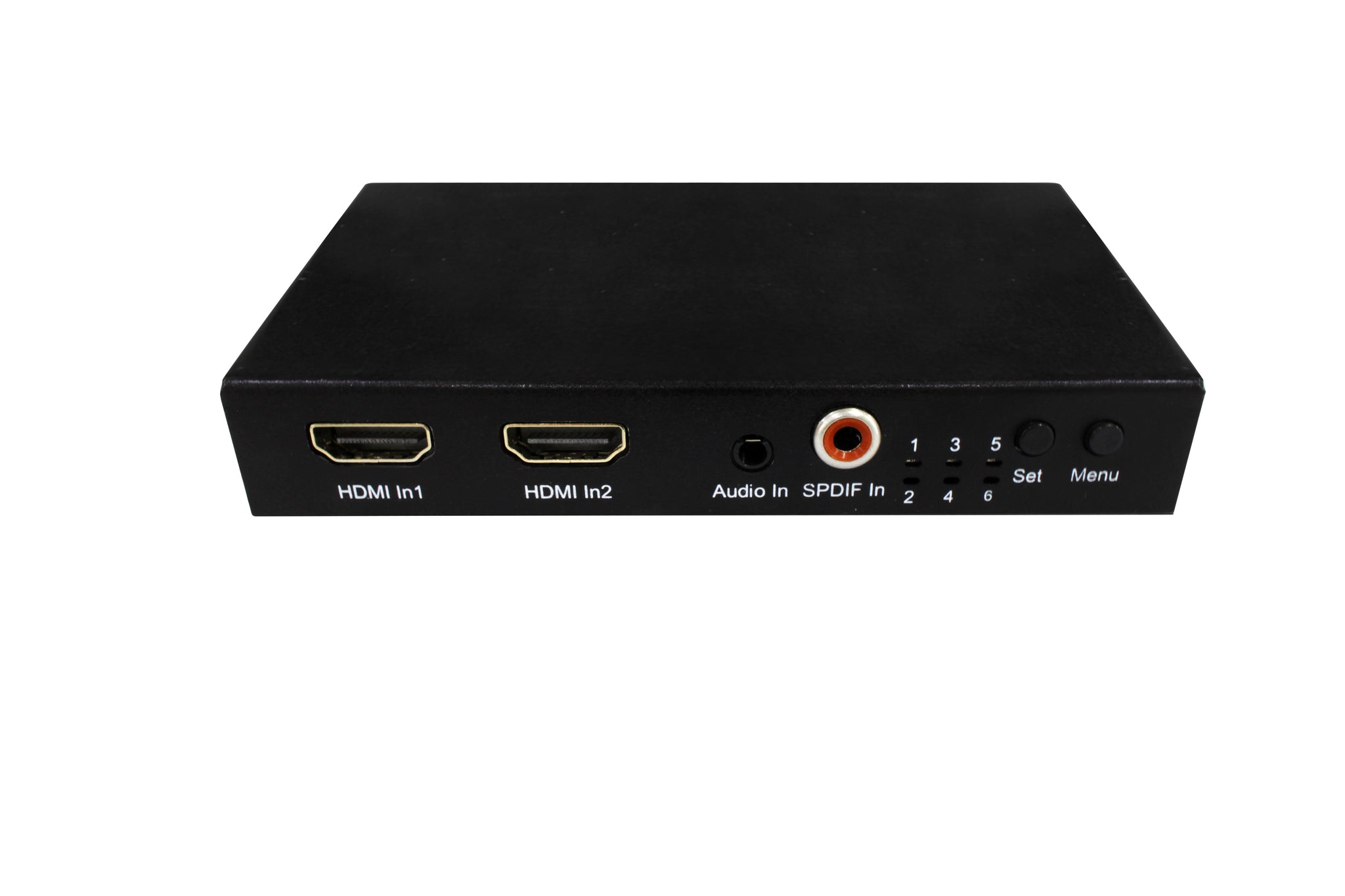

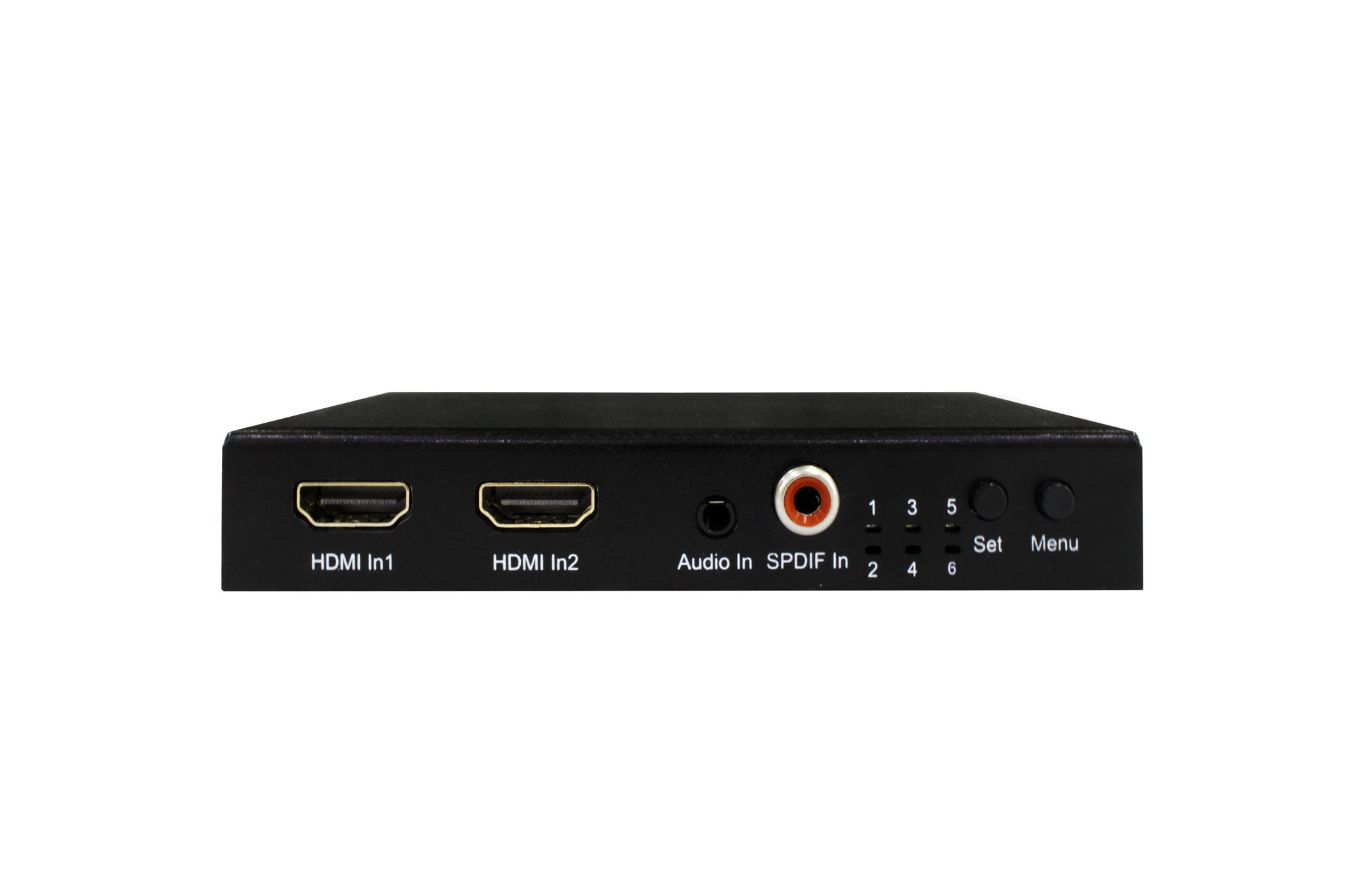

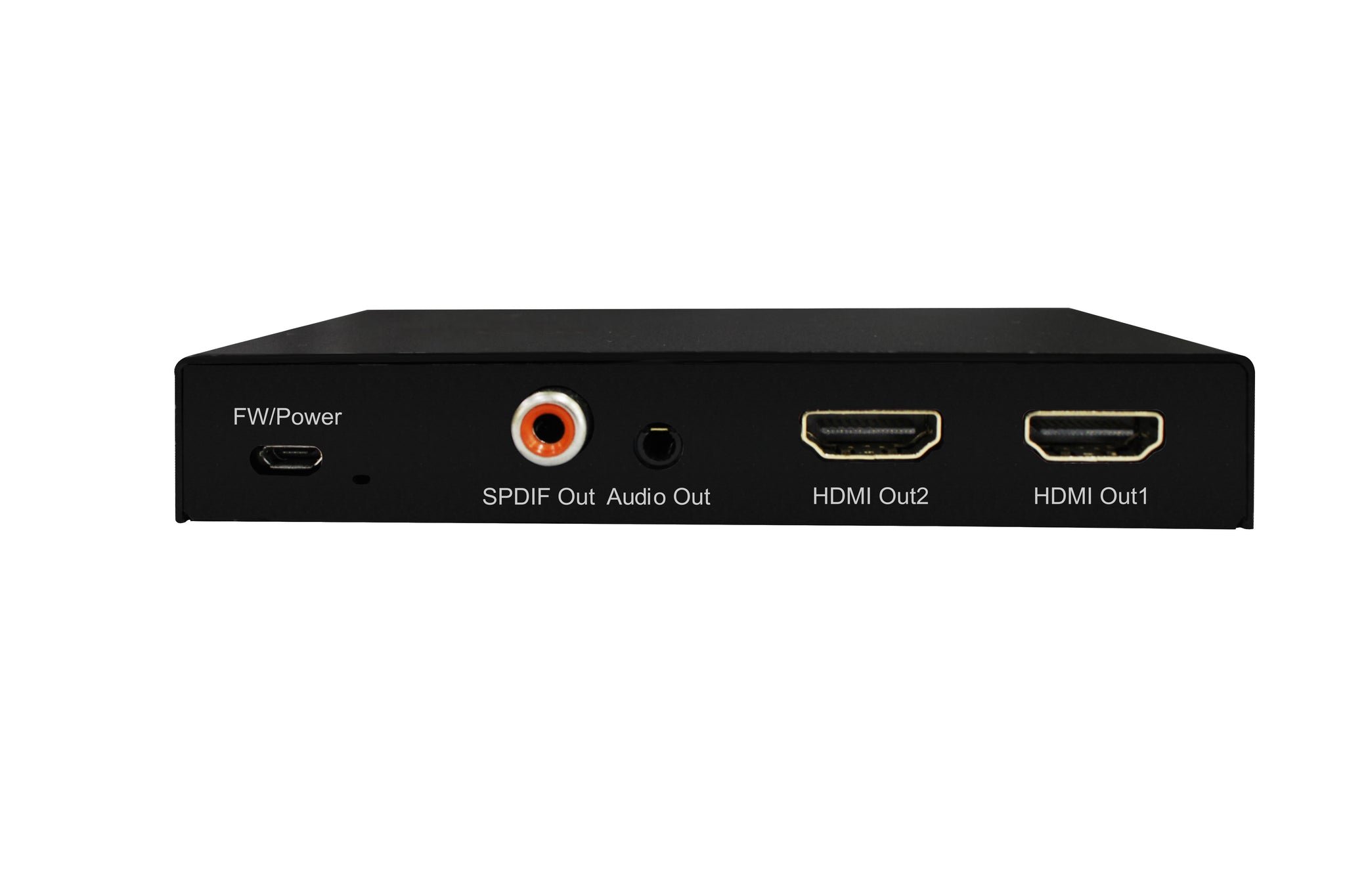

1X2 Splitter/2x1 Switch 4K@60hz YUV4:4:4 18Gbps Support HDCP2.2, HDR10

Features

• HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
• Bandwidth upto 18Gbps
• 2/ HDCP1.4
• Support 3D,HDR10,Dolby vision and DTS

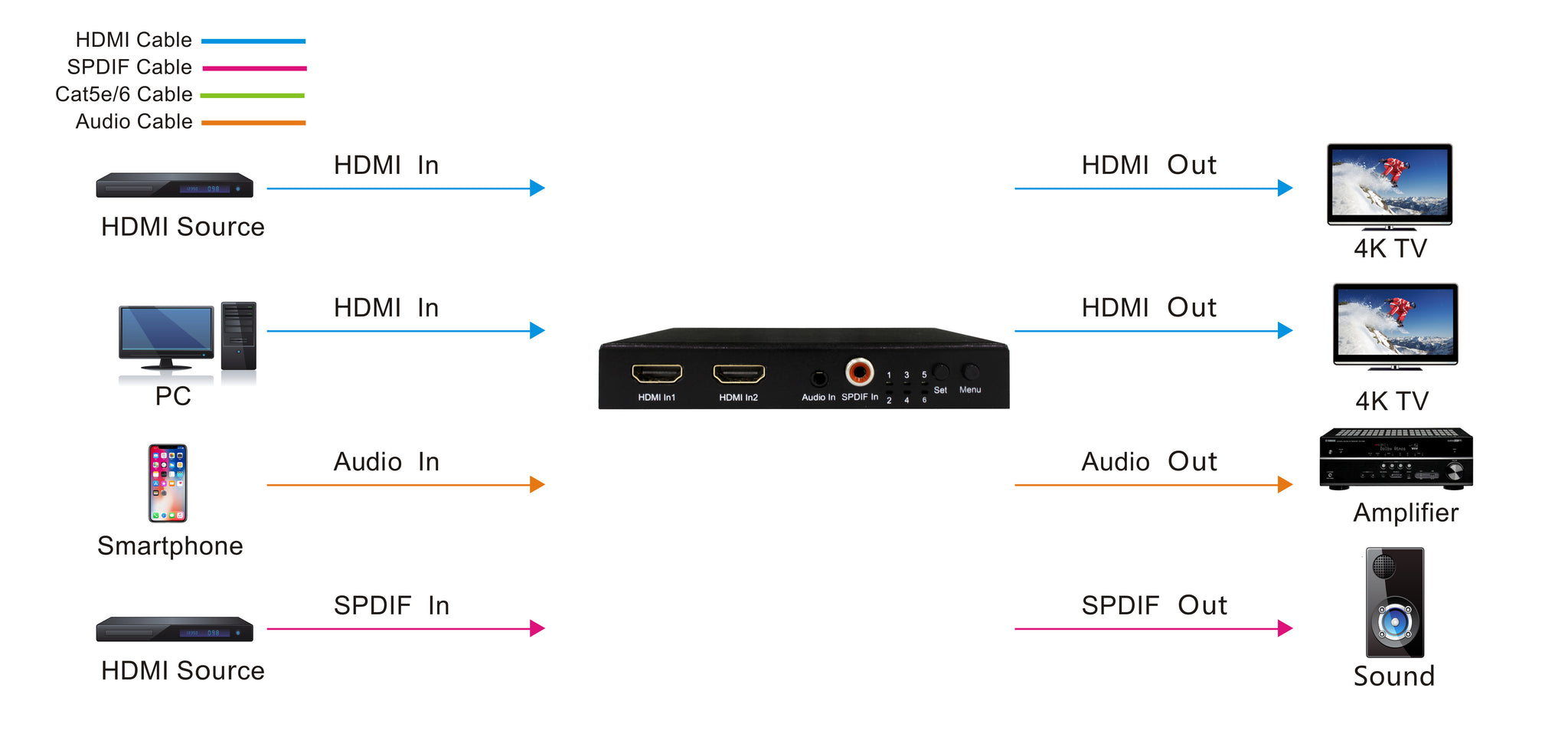

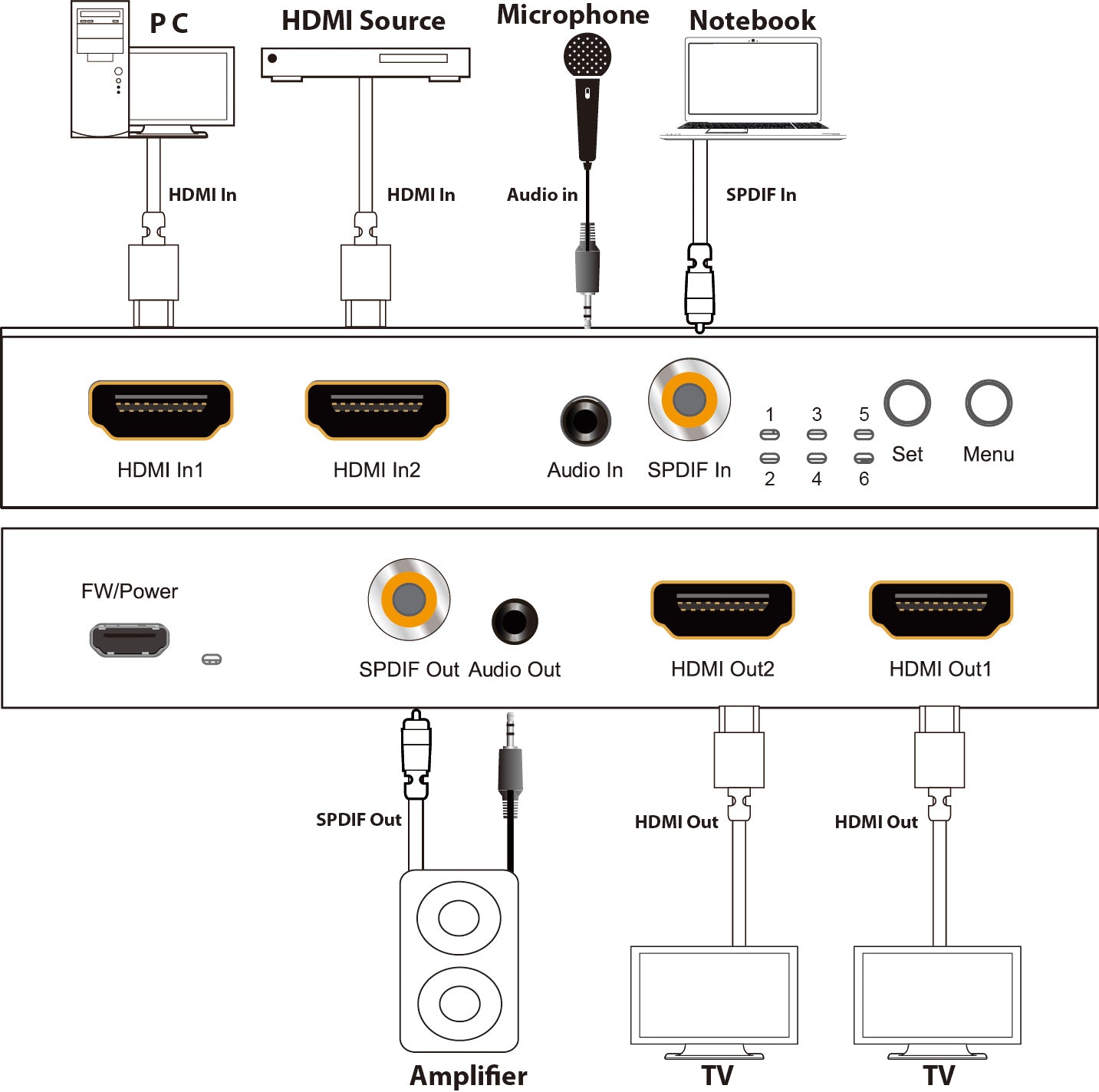

• Support 2xHDMI in, 2xHDMI out
• EDIDmanagement and Down Scaler functions
• Support Analog 3.5mm stereo out /SPDIF out audio extraction
• Support Analog 3.5mm stereo/SPDIF in audio embedded
• Support power off memory function

Specifications

• Operating Temperature Range:                       0℃ to +40℃(+32℉ to +104℉)
• Operating Humidity Range:                             5 to 90%RH (No Condensation)
• Power supply:                                                  5V
• Maximum power (work under 4K2K/60hz):     2W
• Max resolution:                                                4k@60hz YUV4:4:4
• Function:                                                          HDR10 and Dolby vision
• HDMI version:                                                  HDMI 2.0
• HDCP version:                                                  HDCP2.2 / HDCP1.4
• Control ways:                                                   Switch button and EDID
• Distance:                                                          1080P: input 8m max; output 8m max,  4k@30hz: input 8m max;output 8m max,  4k@60hz-8bit: input 5m max; output 5m max
• Dimensions(LxWxH):                                       121x68.2x20mm

Package Includes

• 1x HDMI Switch
• 1x 5V/1A DC power adapter
• 1x User manual

Product Brochure

SX-SW13_Datasheet.pdf
